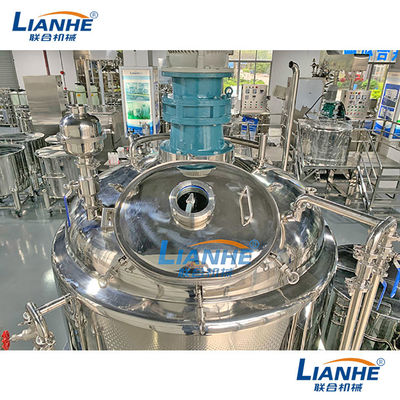

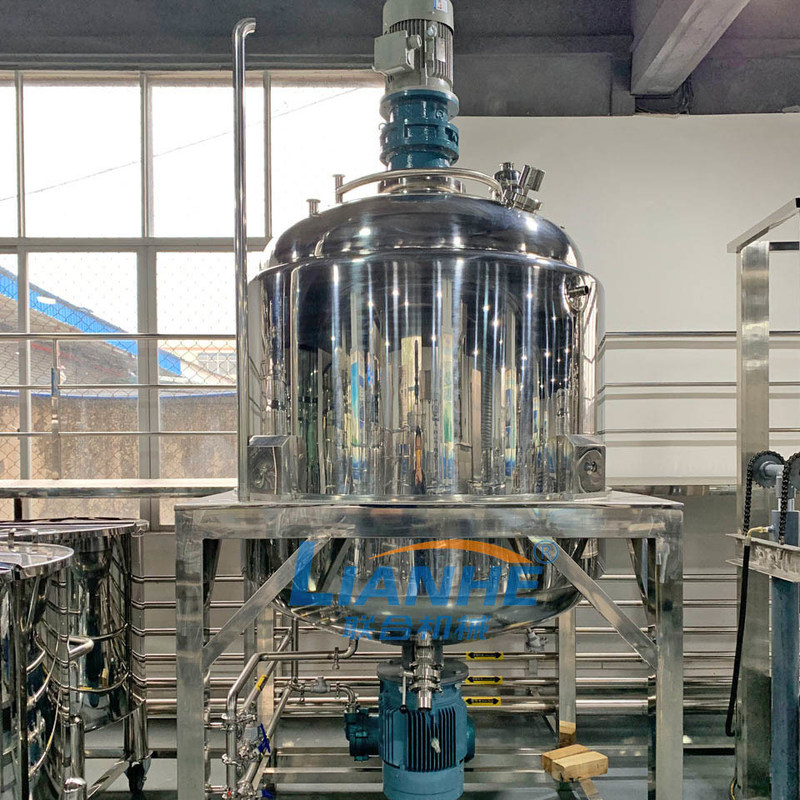

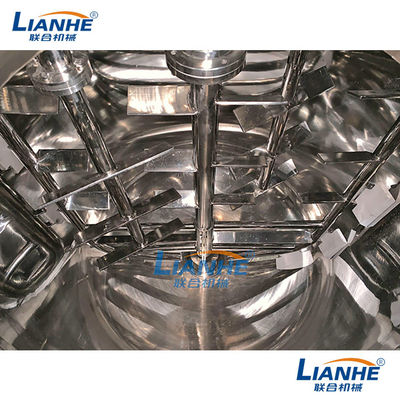

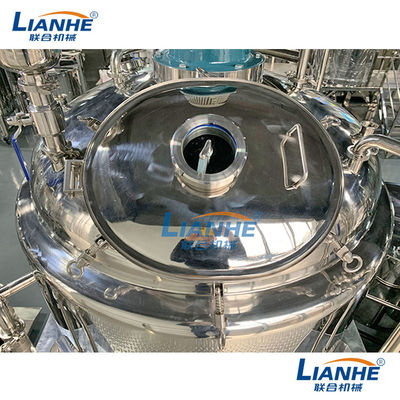

1000L Vacuum Emulsifier Mixer , Fixed Lid , One-Way Mixing Paddle
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | LIANHE |
| 인증: | CE , ISO , SGS , TUV |
| 모델 번호: | LH-VME 1000 |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | Contact Us |
| 포장 세부 사항: | 정상적으로 나무 상자 또는 랩 필름에서 패키징했고 또한 맞춤화될 수 있습니다 |
| 배달 시간: | 30 일로 일합니다 |
| 지불 조건: | 전신환, L/C (신용장), 인수 인도 |
| 공급 능력: | 달 당 20개 세트 / 세트 |
|
상세 정보 |
|||
| 능력: | 1000L (맞춤화될 수 있습니다) | 교반 속도: | 0-65 rpm, 지멘스 또는 ABB 모터 |
|---|---|---|---|
| 확산 소둔 속도: | 0-3600 rpm, 지멘스 또는 ABB 모터 | 재료: | SUS304, SUS316L |
| 핵심 판매 요소: | 긴 서비스 라이프 | 기능: | 혼합되, 가열되는 것 균질화하는 에멀젼이 진공청소기로 청소합니다 |
제품 설명
1000L Vacuum Emulsifier Mixer , Fixed Lid , One-Way Mixing Paddle
Product Description:
The Fixed Type vacuum emulsifying mixer has a large processing capacity in continuous work, and can discharge homogeneously in a cycle. It is suitable for continuous processing of single-variety products.
Product Structure:
The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Homogenizer Working Principle:
The material is emulsified in the shear crack through the strong shear, impact and turbulence between the high-speed rotating rotor and stator, and quickly crushes into 200 nm-2um. Material granulation, emulsification, mixing, blending and dispersion can be completed in a short time.
The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.
Our Service:
As the vacuum emulsifying mixers manufacturer, we customize machines to meet customer needs. We can send our skilled engineers to the customer’s factory to install the machine correctly. We also provide a one-year warranty for all our machines and after-sales service.
